New england ranch
Includes: All Design Drawings ( Floor Plans, Building Elevations, Sections and typical Details. The information presented in these drawings is not prepared or reviewed by a registered architect and should not be used as a basis framing construction.
This modern three bedroom Ranch with an attached garage and a functional open floor plan is most popular in the Northeast. The gable roofs give way to vaulted ceilings, with decorative beams, and sliding doors that make this home feel like home. The most common materials include brick, wood, and stucco.
(We modfiy. design and plan changes at your request) 207-415-5065
AcadworX Drafting Support Services is Maine's premier drafting service, with skilled draftsmen using the most current software, specializing and skilled in the 5 basic disciplines, Architectural, Mechanical, Electrical, Structural and Civil Drafting.

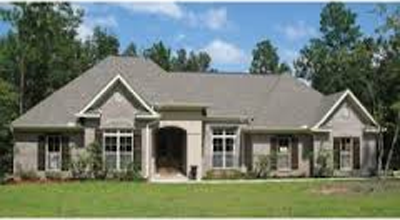

Front Elevation

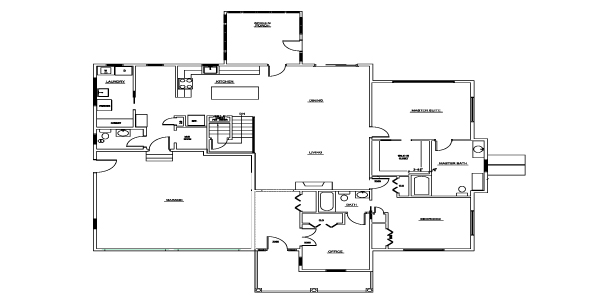

First Floor Plan
