Colonial STYLE

Includes: All Design Drawings ( Floor Plans, Building Elevations, Sections and typical Details. The information presented in these drawings is not prepared or reviewed by a registered architect and should not be used as a basis framing construction.

AcadworX Drafting  Support Services is Maine's premier drafting service, with skilled draftsmen using the most current software, specializing and skilled in the 5 basic disciplines, Architectural, Mechanical, Electrical, Structural and Civil Drafting.

(We modfiy design plan changes at your request) 207-415-5065

Architectural Drafting refers to any free standing structure new or existing. We use the most popular software packages, AutoCAD, Revit Architecture and 3d studio Max. We understand building codes, NFPA, ADA, OSHA and BOCA regulations relative to the project we are working on. Our familiarity and experience allows for timely, creative and compliant designs



Front Elevation house plan

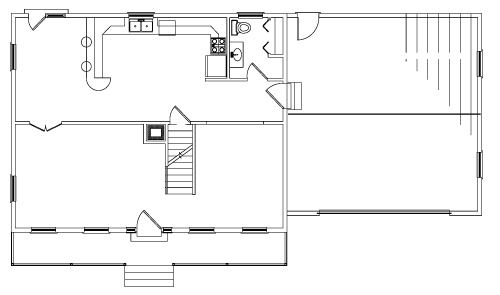

First Floor Plan house plan

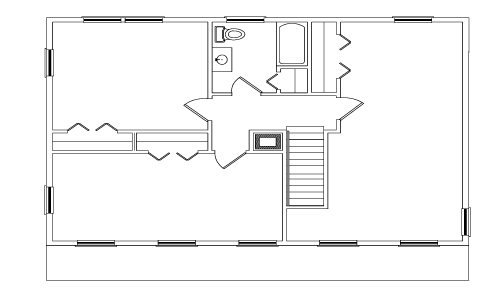

Second Floor Plan house plan
